| GREAT ORGAN | |
|---|---|
| Double Open Diapason | 16' Z & SM |
| No. 1 Open Diapason | 8' Z & SM |
| No. 2 Open Diapason | 8' Z & SM |
| Claribel | 8' W |
| Principal | 4' SM |
| Flute | 4' W & SM |
| Twelfth | 3' SM |
| Fifteenth | 2' SM |
| Mixture | III rks SM |
| Double Trumpet | 16' Z & SM |
| Posaune | 8' SM |
| Clarion | 4' SM |
| Great Sub Octave | |
| Great Super Octave | |
| Swell to Great Sub | |
| Swell to Great | |
| Swell to Great Super | |
| Choir to Great | |
| SWELL (enclosed) | |
| Bourdon 16 W | 16' W |
| Open Diapason | 8' Z & SM |
| Hohi Flute | 8' W |
| Stopped Diapason | 8' W |
| Gamba grooved bass | 8' SM |
| Celeste TC | 8' SM |
| Octave | 4' SM |
| Rohr flote | 4' W & SM |
| Piccolo | 2' W & SM |
| Cornopean | 8' SM |
| Oboe | 8' SM |
| Vox Humana | 8' SM |
| Clarion | 4' SM |
| Tremulant | |
| Swell Sub Octave | |
| Swell Super, Octave | |
| CHOIR (enclosed) | |
| Hohl Flute | 8' W |
| Gedact | 8' W |
| Dulciana | 8' Z & SM |
| Harmonic Flute | 4' SM |
| Flageolet | 2' W & SM |
| Clarionet | 8' SM |
| Orchestral Oboe | 8' SM |
| Tremulant | |
| Swell to Choir | |
| PEDAL | |
| Open Diapason metal | 16' Z & SM |
| Open Diapason wood | 16' W |
| Bourdon | 16' W |
| Violon | 8' W |
| Bass Flute | 8' W |
| Fifteenth | 4' SM |
| Pedal Super Octave | |
| Choir to Pedal | |
| Great to Pedal | |
| Swell to Pedal | |
| PIPE MATERIALS | |
| SM = spotted metal (lead/tin alloy) | |
| W= wood | |
| Z= zinc (flue pipes longer than 4ft; reed pipes longer than 8ft) | |
| COMPASS | |
| Manual C - c4 61 notes | |
| Pedal CC - f 30 notes | |
| ACCESSORIES | |
| 5 fixed thumb pistons to Great | |
| 6 fixed thumb pistons to Swell | |
| 3 fixed thumb pistons to Choir | |
| 3 fixed composition pedals to Pedal | |
| Lever pedal to Swell (left pedal) | |
| Lever pedal to Choir (right pedal) | |
| MIXTURE COMPOSITION | |
| C - b0 17 19 22 | |
| C1 - f3 12 15 17 | |
| F#3 - C4 8 12 15 | |
| PITCH | |
| C = 540 Hz @ 19° C (old philharmonic) | |
| WIND PRESSURES | |
| Great, Swell and Choir 3-1/4" (84mm) | |
| Pedal and action 4" (103mm) | |
| Ventus 2-1/2hp blowing plant delivering 120mm output | |

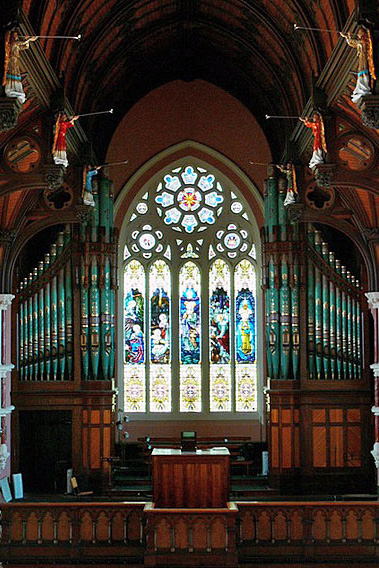

| LAYOUT OF THE ORGAN | |
| Left case: Swell Organ, Swell reservoir (mounted over the top of the swell box and forming its roof), Pedal Open Diapason Metal 16ft (in façade) | |

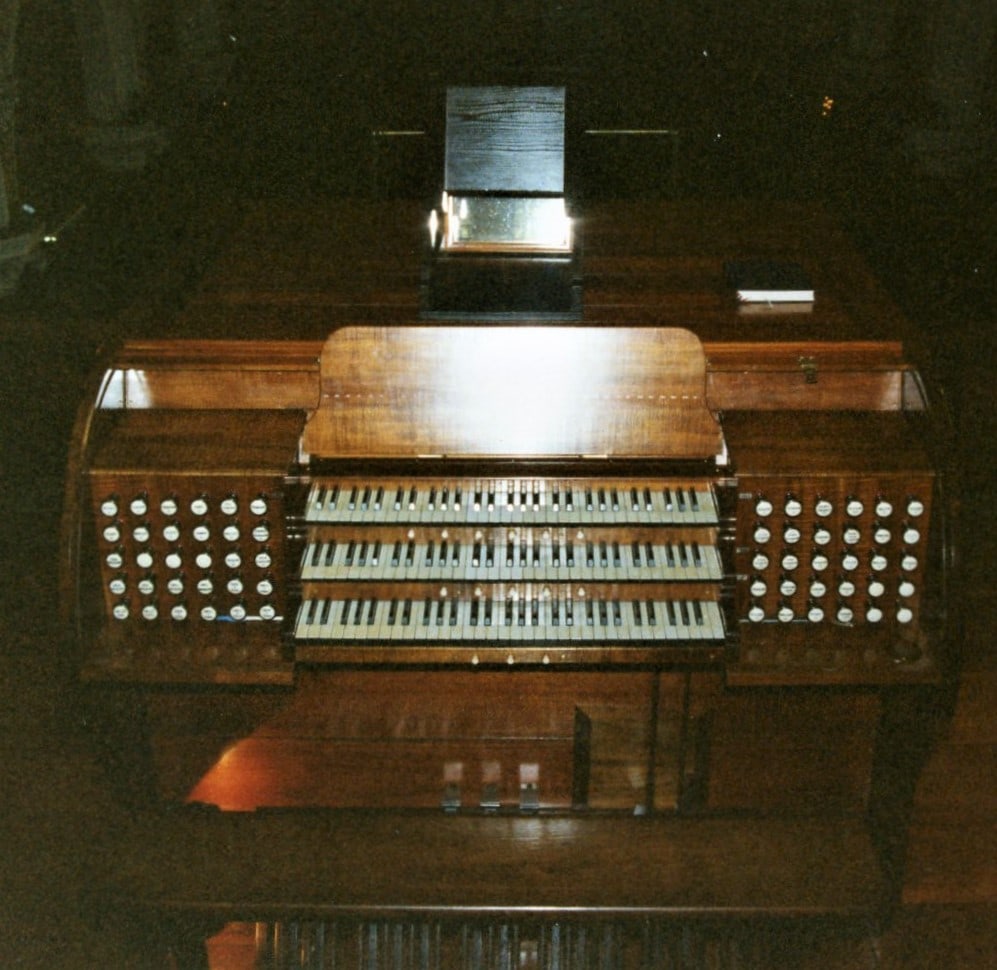

| Centre of gallery: Console | |

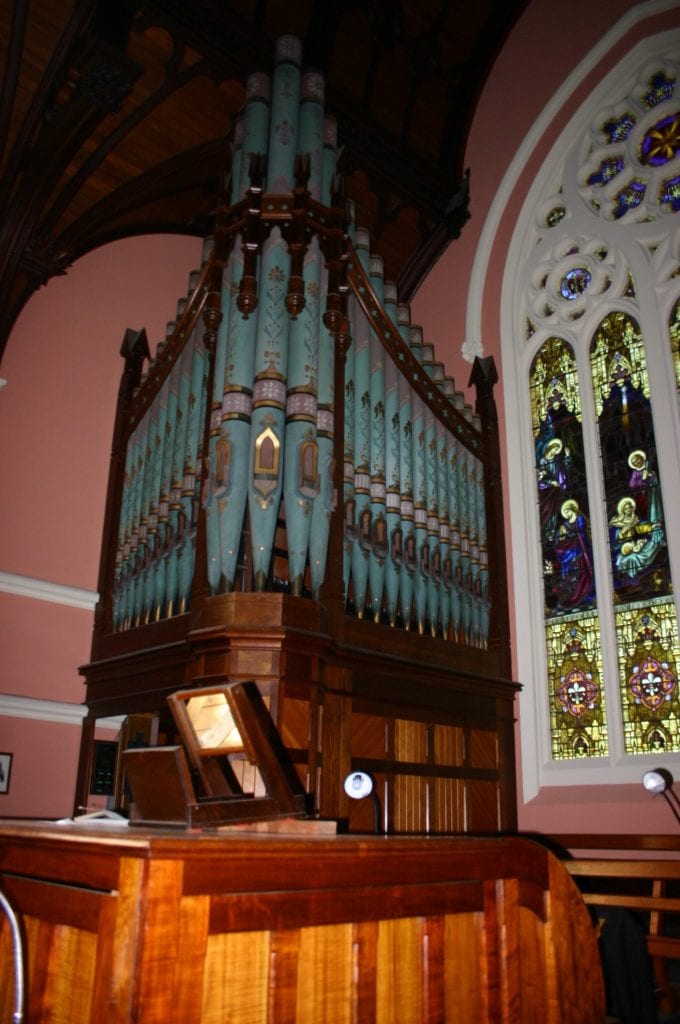

| Right case: Great Organ, Choir Organ (enclosed in a swell box behind the Great Organ), Pedal Organ (mounted at floor level behind the Choir Organ). | |
| Blowing chamber (over former baptistry and adjacent to right case): Large reservoir (Pedal Organ and action), Small reservoir (Great and Choir Organs), electric blower. |
3 manuals, 38 speaking stops, tubular (pressure) pneumatic action. Largest organ built in Australia during the 19th century that survives in its original condition.
First organ classified by National Trust.
